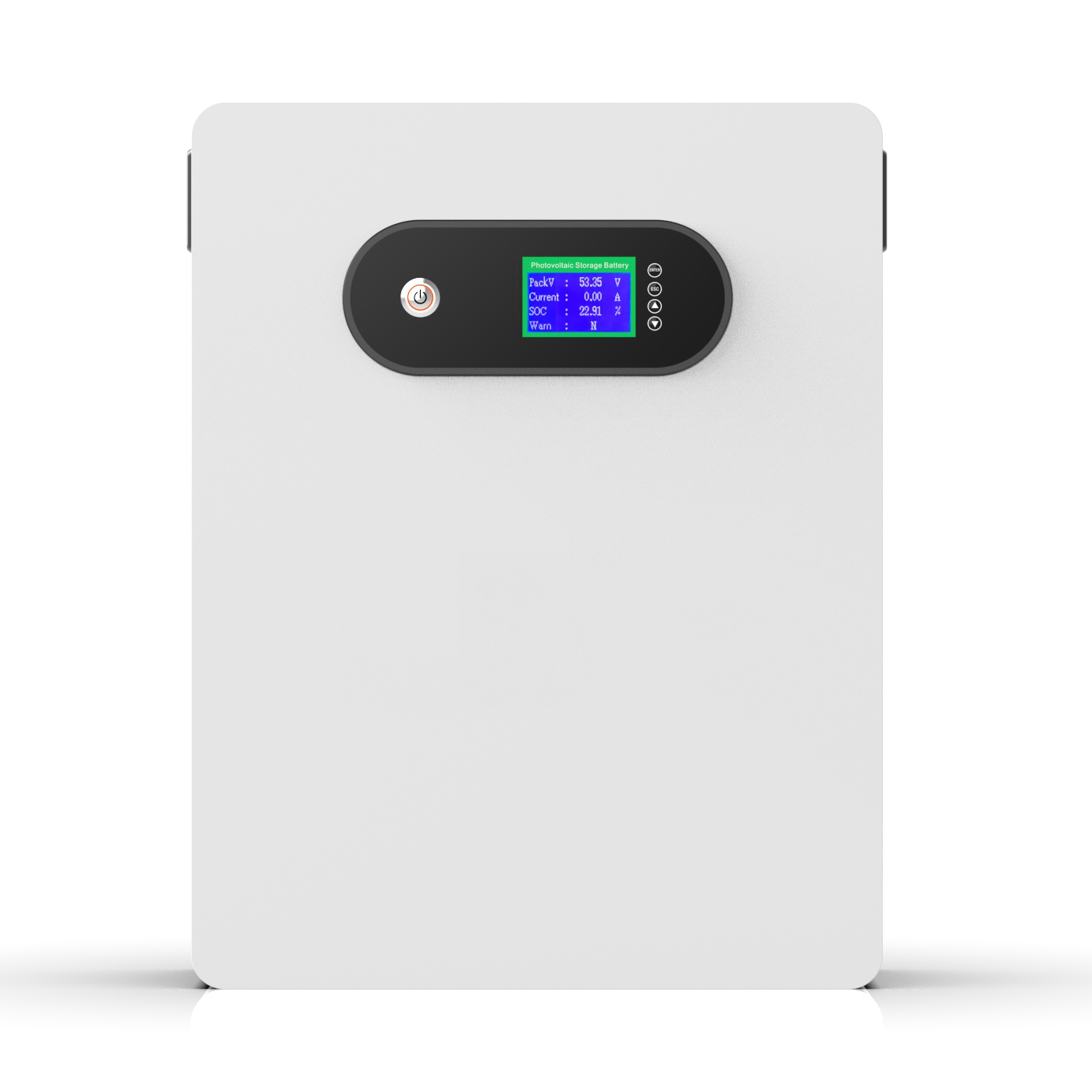

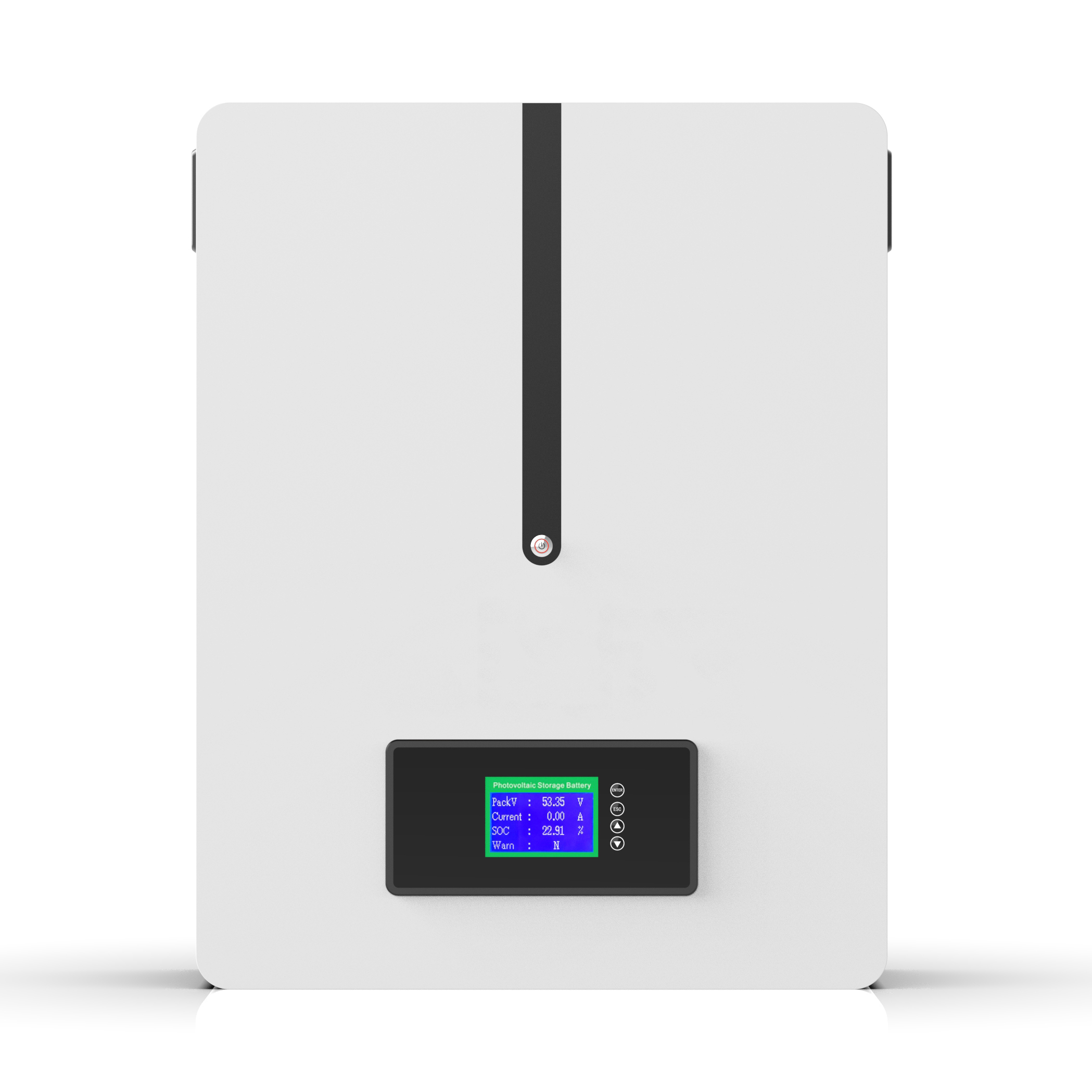

Wall-mounted Home Solar Energy Storage Lithium Ion Battery 48V 100AH
| Product Name | Wall-mounted Home Solar Energy Storage Lithium Ion Battery |
| Size | depend on products |
| Cycle life | 6000times,25℃ |
| Maximum Continuous Discharge Current | 50A |
| Operation Temperature Range-Charge | 0~45℃ |
Description:
Product Description
Plug-in Energy Storage Battery Module (Low Voltage 5.12kWh)
Advantages:
Intelligent BMS Multiple protections
Excellent performance standards 6000 cycles lifespan
Standard modular design, easy maintenance
Battery support for parallel connection, capacity up to 80kWh
Support APP remote monitoring, cloud platform intelligent management
Specification:
General
Nominal voltage: 51.2V
Battery voltage range: 44.8V-57.6V
Nominal capacity: 100Ah @0.2C,25℃
Rated energy: 5.12kWh @0.2C,25℃
Standard charge/Discharge current: 20A @25℃
Max. charge/Discharge current: 100A @25℃
Communication: CAN/RS485
Expandable capability: 15
Self-discharges: ≤3% /Month
Protection: Over voltage & Under voltage/Over current/Short-circuit/Over temperature & Under temperature protection etc.
System parameter:
IP rating: IP20
Cooling: Natural
Cycles: ≥6000 cycles 80%DOD,@25
Certification: IEC62619, IEC62620, EN61000, UN38.3, UL1973
Environment:
Altitude: 0-4000m (Derating over 2000m)
Operating temperature range: Charging: 0∽+60℃ Discharge: -20∽+60℃
Advantage of the lifepo4 battery:
♦ Low Self Discharge
♦ Long Designed service Life ,Deep Cycles
♦ Excellent Discharge Performance
♦ Environment Friendliness
♦ Wide suitability of ambient temperature range
FAQ:
Q1:Do you accept small order?
A: Yes, we accept small orders or trial orders to test
Q2:Can you accept ODM&OEM?
A: Yes, ODM and OEM are warmly accepted. We are very glad to provide customized service for you, including packing, logo, brand,new molds and so on.
Q3:What is delivery time if we place an order?
A: It depends order quantity. Usually, we can deliver goods within 5 -10 working days for small orders. For more quantity,let's confirm when you place offical order.
Q4. How to proceed with an order?
A: Firstly let us know your requirements or application. Secondly, We quote according to your require-
ments or our suggestions.Thirdly customer confirms the samples and places a deposit for formal order.
Q5: How does your factory do regarding the quality control?
A: Quality is priority. We always attach great importance to quality control from the very beginning to the end of the production. Every product will be fully assembled and carefully tested before packing and shipping.
Q6. How do you ship the goods
A:Normally, we will ship the goods by air, by sea and by express, such as DHL, Fedex, UPS, TNT basing on the needs of different clients.
